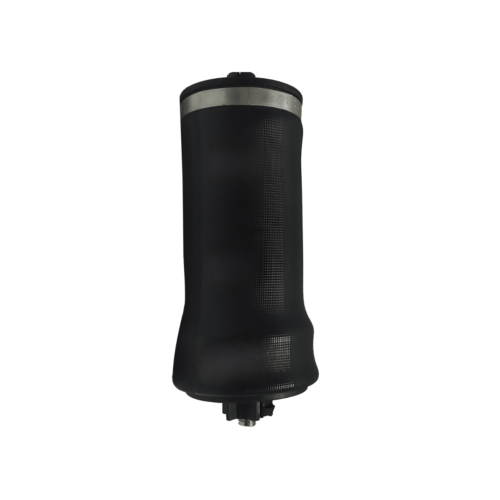

INS.210.7109 Cabin Air Spring

CROSS NO

Contitech 69624

Firestone W02-358-7109

Kenworth T811000

Link 11020077

Link 1104K002

SPECIFICATIONS

Applications : Kenworth Link

Type : Sleeve Type

Load (lbs) @80 PsI : 874

Load (lbs) @100 PsI : 1094

Natural Freq. (cpm) : 115

Design Height (In) : 4.00

Bottom Plate Type : A

Top Plate Hole/stud Qty : 1

Top Plate Dia. (a) : 2.99

Top Plate C To C Dia. (b) : N/a

Bottom Plate Hole/stud Qty : 1

Bottom Plate Dia. (c) : 2.89

Bottom Plate C To C Dia. (d) : 2.25″

Bottom Part # : N/a

Bottom Plate Alignment : Parallel

Bumper : No

Bracket : N/a

Min. Height : 2.40

Max. Height : 6.50

Max. Dia. : 5.60

WHERE USED

Kenworth Link

SERIES

Kenworth T660 (no Year)

Kenworth T800 (no Year)

Kenworth W900 (no Year)

COUNTRY OF ORIGIN

Made in Turkiye
