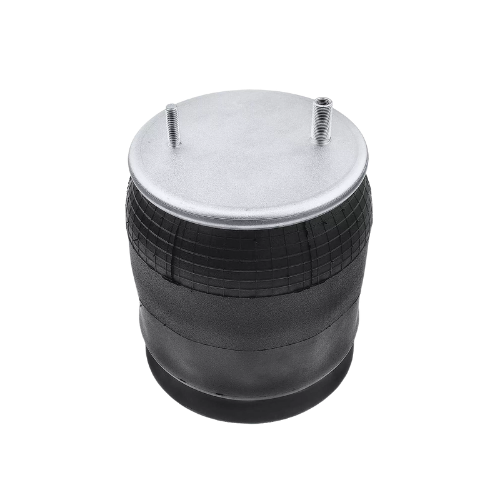

INS.200.9082 Air Spring Rolling Lobe

CROSS NO

Contitech 161015

Firestone W01-358-9082

Goodyear 1R12092

Hendrickson 365147

IHC 517559C9

SPECIFICATIONS

Applications : Hendrickson Trailer Hutch Kelderman Kwik-Loc Reyco

Granning Ridewell SAF Holland/Neway Watson and Chalin

Type : Rolling Lobe

Firestone Bellows# : 1T15M-6

Contitech Bellows# : 9 10-16

Triangle Bellows# : 6363

Load (Lbs) @80 PSI : 5500

Load (Lbs) @100 PSI : 7000

Natural Freq. (CPM) : 70

Design Height (In) : 13.50

Bottom Plate Type : Plastic

Top Plate Hole/Stud Qty : 2

Top Plate Dia. (A) : 9.00

Top Plate C to C Dia. (B) : 5.50

Bottom Plate Hole/Stud Qty : 4

Bottom Plate Dia. (C) : 10.28

Bottom Plate C to C Dia. (D) : 7.87″

Bottom Part # : BS08133

Bumper : Yes

Bracket : N/A

Min. Height : 7.90

Max. Height : 21.50

Max. Dia. : 12.60

WHERE USED

Hendrickson Turner Trailer / Hutch Trailer / Neway

Holland Trailer / Neway / Holland Lift / Ridewell Trailer

SERIES

No Series

COUNTRY OF ORIGIN

Made in Turkiye
