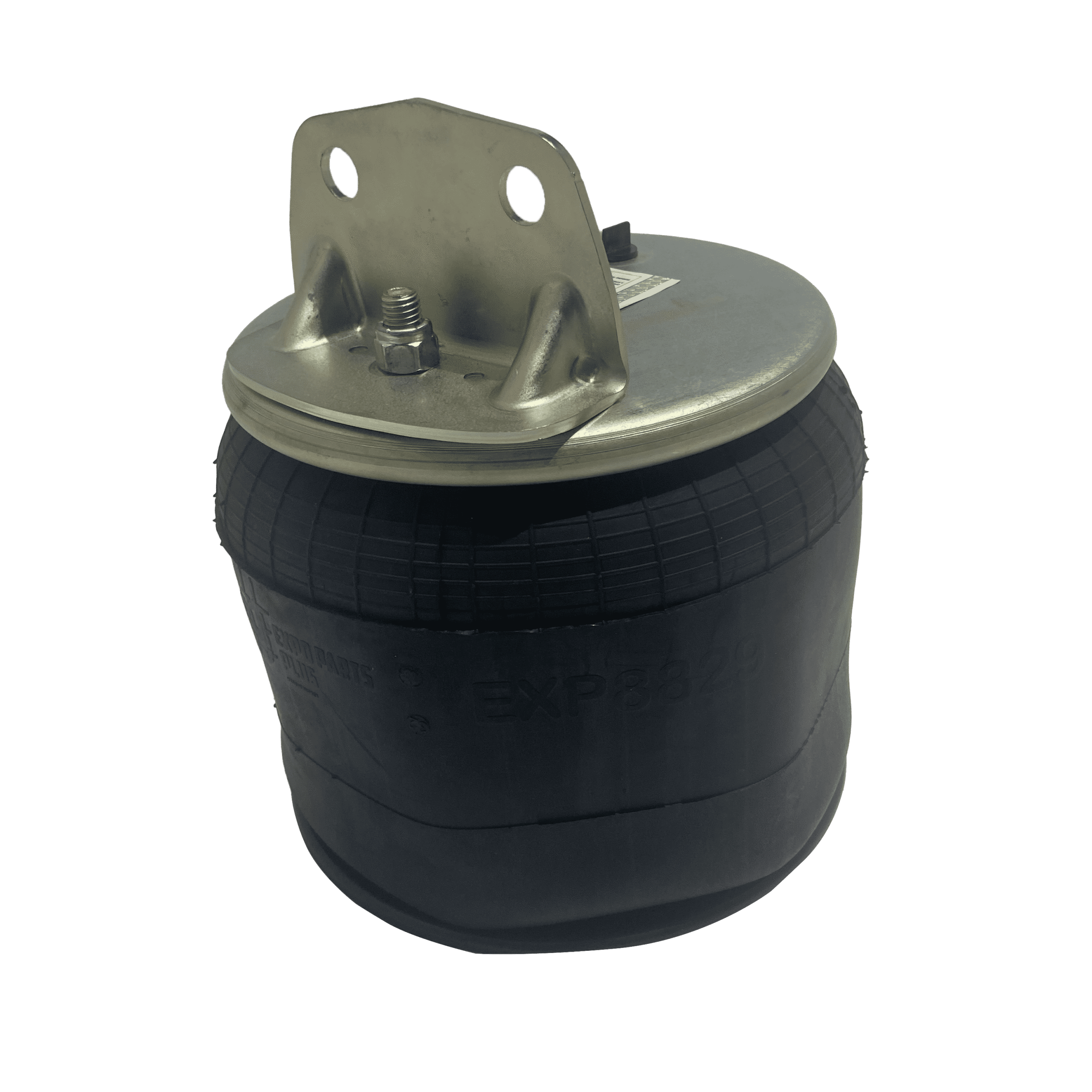

INS.200.8829 Air Spring Plastic Base

CROSS NO

Contitech AS8829

Contitech 74884

Firestone W01-358-8829

Mack 57QL54M

Volvo 8097092

SPECIFICATIONS

Applications : Mack Volvo

Type : Rolling Lobe

Brand : Econoride

Firestone Bellows# : 1t15m-6

Goodyear Bellows# : 566-24-1-010, 566-24-3-164

Contitech Bellows# : 9 10s-17

Load (lbs) @80 PsI : 6032

Load (lbs) @100 PsI : 7540

Natural Freq. (cpm) : 57

Design Height (In) : 13

Bottom Plate Type : Plastic

Top Plate Hole/stud Qty : 2

Top Plate Dia. (a) : 9.00

Top Plate C To C Dia. (b) : 5.50

Bottom Plate Hole/stud Qty : 1

Bottom Plate Dia. (c) : 10.00

Bottom Plate C To C Dia. (d) : N/a

Bottom Part # : Bs14556

Bumper : No

Bracket : Ab8829p

Min. Height : 6.9

Max. Height : 23

Max. Dia. : 12.6

WHERE USED

Mack / Volvo

SERIES

No Series

COUNTRY OF ORIGIN

Made in Turkiye
