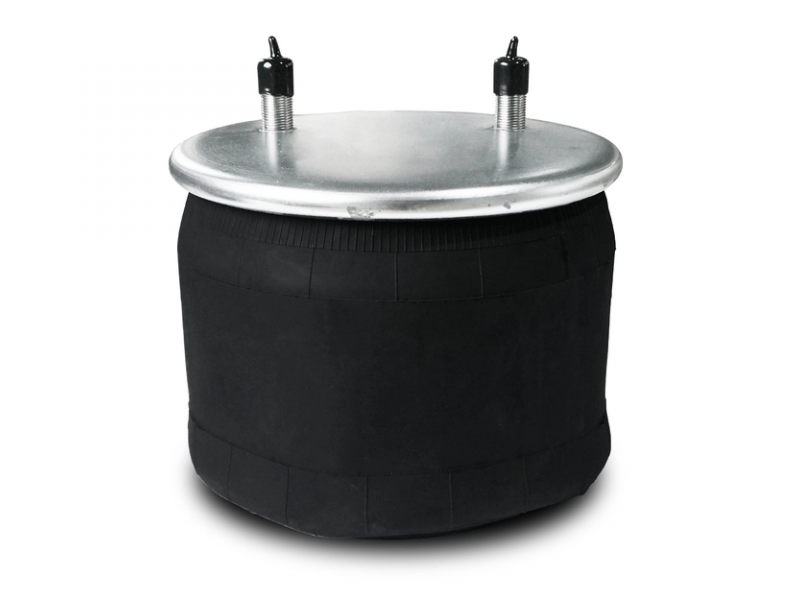

INS.200.8755 Air Spring Plastic Base

CROSS NO

Contitech AS8755

Firestone W01-358-8755

Goodyear 1R13124

Hendrickson S21623

Neway G2298755300

SPECIFICATIONS

Applications : Hendrickson Trailer

Type : Rolling Lobe

Firestone Bellows# : 1t17b-5

Goodyear Bellows# : 566-26-3-050

Contitech Bellows# : 10 10-15

Triangle Bellows# : 6390

Load (lbs) : @80 PsI 6760

Load (lbs) : @100 PsI 8450

Natural Freq. (cpm) : 75

Design Height (In) : 10.50

Bottom Plate Type : Plastic

Top Plate Hole/stud Qty : 2

Top Plate Dia. (a) : 10.20

Top Plate C To C Dia. (b) : 5.50

Bottom Plate Hole/stud Qty : 4

Bottom Plate Dia. (c) : 10.20

Bottom Plate C To C Dia. (d) : 5.66″

Bottom Part # : Bs17377

Bumper : Yes

Bracket : N/a

Min. Height : 7.10

Max. Height : 19.00

Max. Dia. : 13.70

WHERE USED

Hendrickson Trailer

SERIES

No Series

COUNTRY OF ORIGIN

Made in Turkiye
