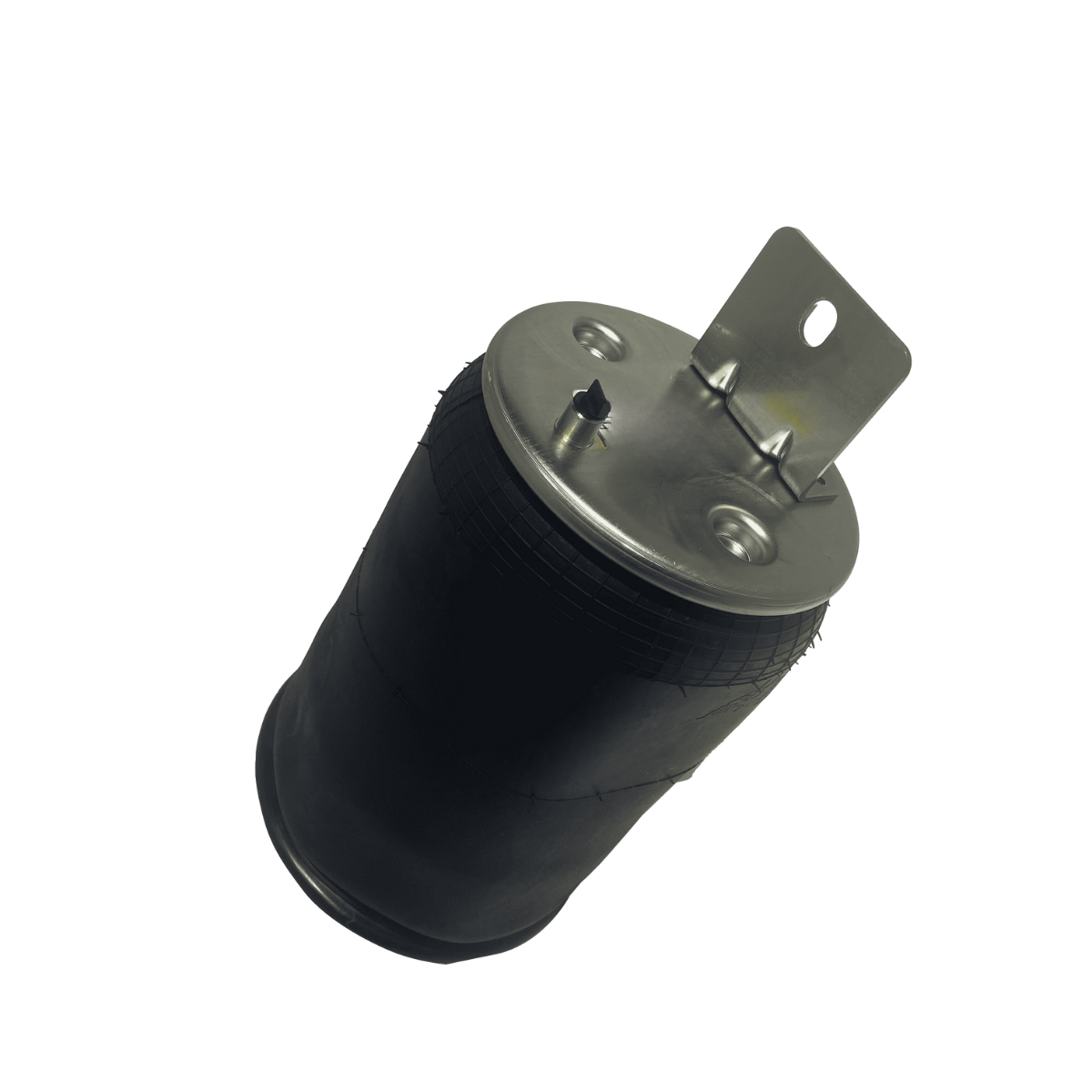

INS.200.9875 Air Spring Plastic Base
Description
CROSS NO
Firestone 9875
Firestone W01-358-9875
Goodyear 1R12-432
IHC 2514460C1
IHC 3541731C1
SPECIFICATIONS
Applications : International
Type : Rolling Lobe
Brand : INSEL USA
Firestone Bellows# : 1t15m-9
Goodyear Bellows# : 566-24-3-066
Contitech Bellows# : 9 10b-19.5
Load (lbs) @80 PsI : 6264
Load (lbs) @100 PsI : 7830
Natural Freq. (cpm) : 60
Design Height (In) : 15.00
Bottom Plate Type : Plastic
Top Plate Hole/stud Qty : 2
Top Plate Dia. (a) : 9.00
Top Plate C To C Dia. (b) : 5.87
Bottom Plate Hole/stud Qty : 1
Bottom Plate Dia. (c) : 10.00
Bottom Plate C To C Dia. (d) : N/a
Bottom Part # : Bs16239
Bumper : No
Bracket : Ab9875p
Min. Height : 6.10
Max. Height : 23.70
Max. Dia. : 13.60
WHERE USED
International
SERIES
No Series
COUNTRY OF ORIGIN
Made in Turkiye
