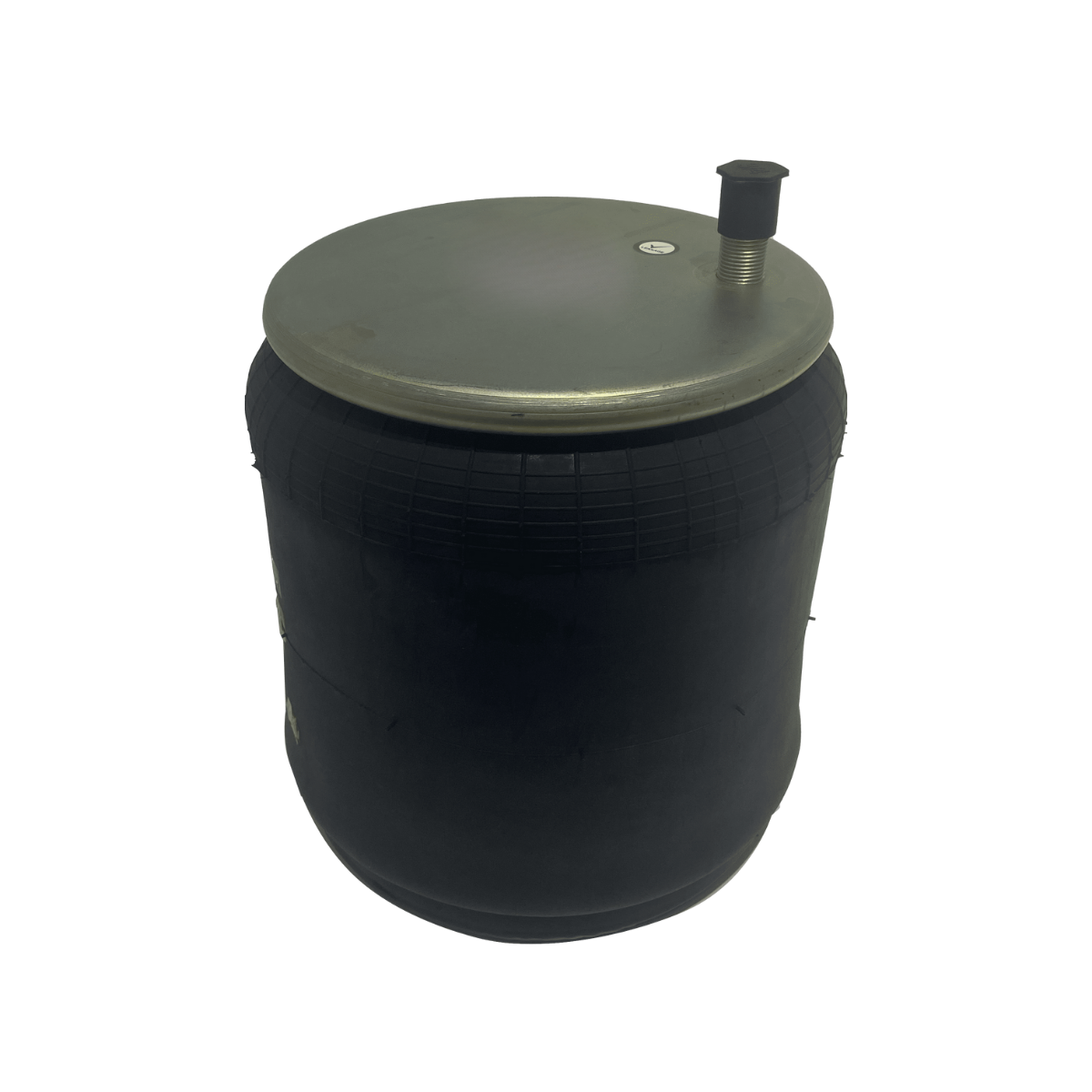

INS.200.9270 Air Spring Metal Base

CROSS NO

Contitech 161034

Firestone W01-358-9270

Goodyear 1R13102

Hendrickson S20010

Neway G2299270300

SPECIFICATIONS

Applications : Hendrickson Trailer

Type : Rolling Lobe

Brand : INSEL USA

Firestone Bellows# : 1t15vm-4.0, 1t15vp-4.0

Goodyear Bellows# : 566-26-3-053, 566-26-3-036

Contitech Bellows# : 9 10-13.5

Triangle Bellows# : 6385

Design Height (In) : 9.00

Bottom Plate Type : Steel

Top Plate Hole/stud Qty : 1

Top Plate Dia. (a) : 9.00

Top Plate C To C Dia. (b) : N/a

Bottom Plate Hole/stud Qty : 4

Bottom Plate Dia. (c) : 9.49

Bottom Plate C To C Dia. (d) : 5.67″

Bottom Part # : Bs09758

Bumper : Yes

Bracket : N/a

Min. Height : 5.40

Max. Height : 16.80

Max. Dia. : 12.60

WHERE USED

Volvo/white

SERIES

No Series

COUNTRY OF ORIGIN

Made in Turkiye
