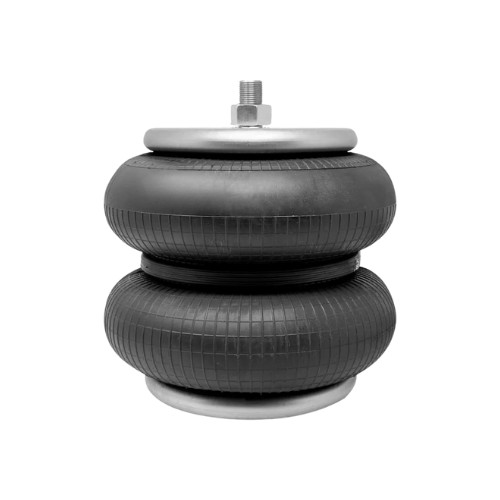

INS.200.6897 Air Spring Double Convoluted

CROSS NO

Contitech 64517

Contitech FD 20019505

Firestone W01-358-6897

Goodyear 2B9229

Goodyear 2B9-229

SPECIFICATIONS

Applications : Ridewell Watson and Chalin

Type : Double Convoluted

Brand : Econoride

Firestone Bellows# : 20

Goodyear Bellows# : 578-92-3-202, 556-23-8-325

Contitech Bellows# : FD 200-19

Triangle Bellows# : 6325

Load (Lbs) @80 PSI : 2560

Load (Lbs) @100 PSI : 3200

Natural Freq. (CPM) : 108

Design Height (In) : 8

Bottom Plate Type : N/A

Top Plate Hole/Stud Qty : 1

Top Plate Dia. (A) : 6.31

Top Plate C to C Dia. (B) : N/A

Bottom Plate Hole/Stud Qty : 1

Bottom Plate Dia. (C) : 6.30

Bottom Plate C to C Dia. (D) : N/A

Bumper No

Min. Height : 3

Max. Height : 10.5

Max. Dia. : 9.8

WHERE USED

Ridewell Watson and Chalin

SERIES

No Series

COUNTRY OF ORIGIN

Made in Turkiye
